page.airframe
V-03 · page.proj.side

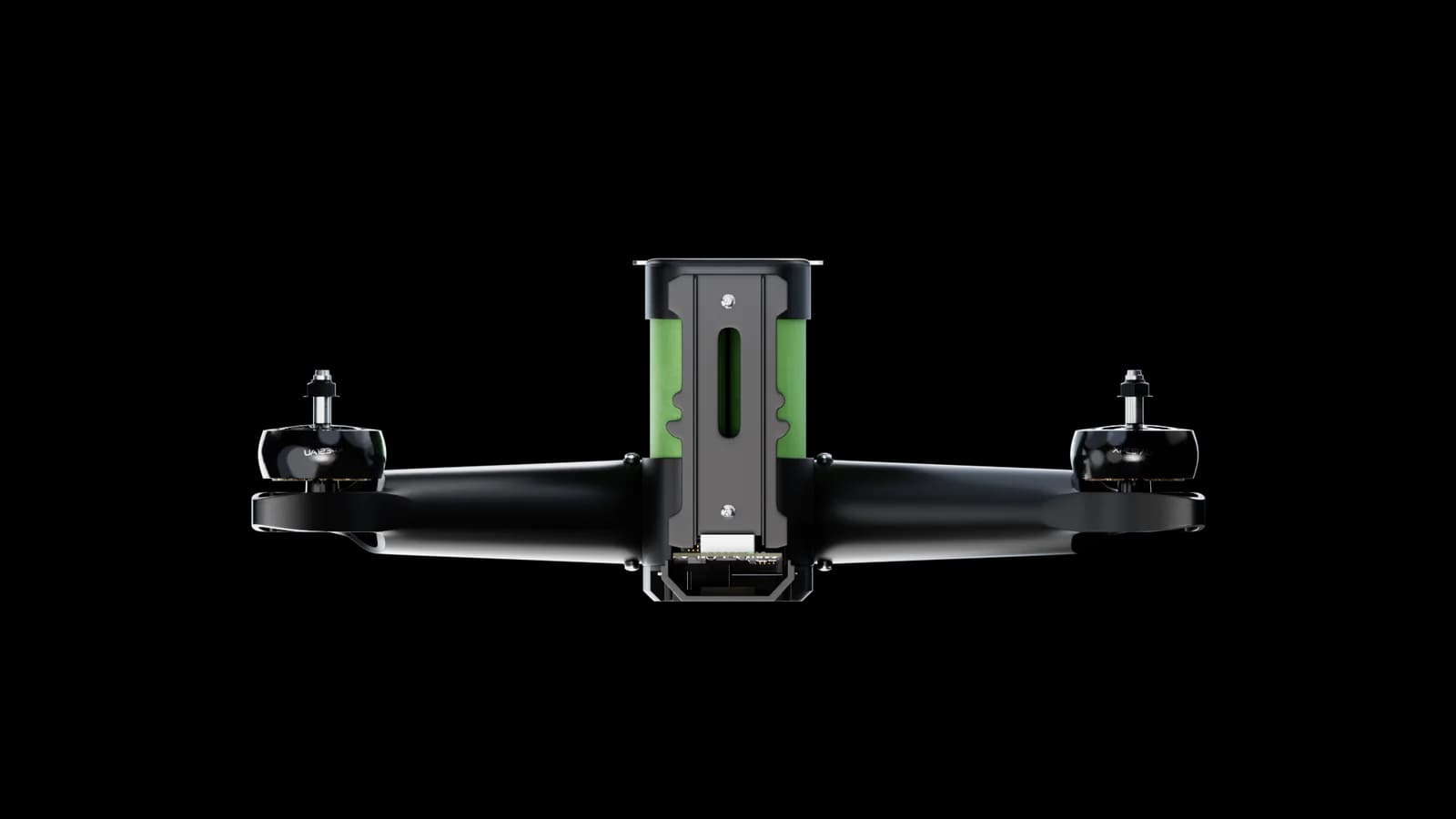

V-01 · page.proj.front

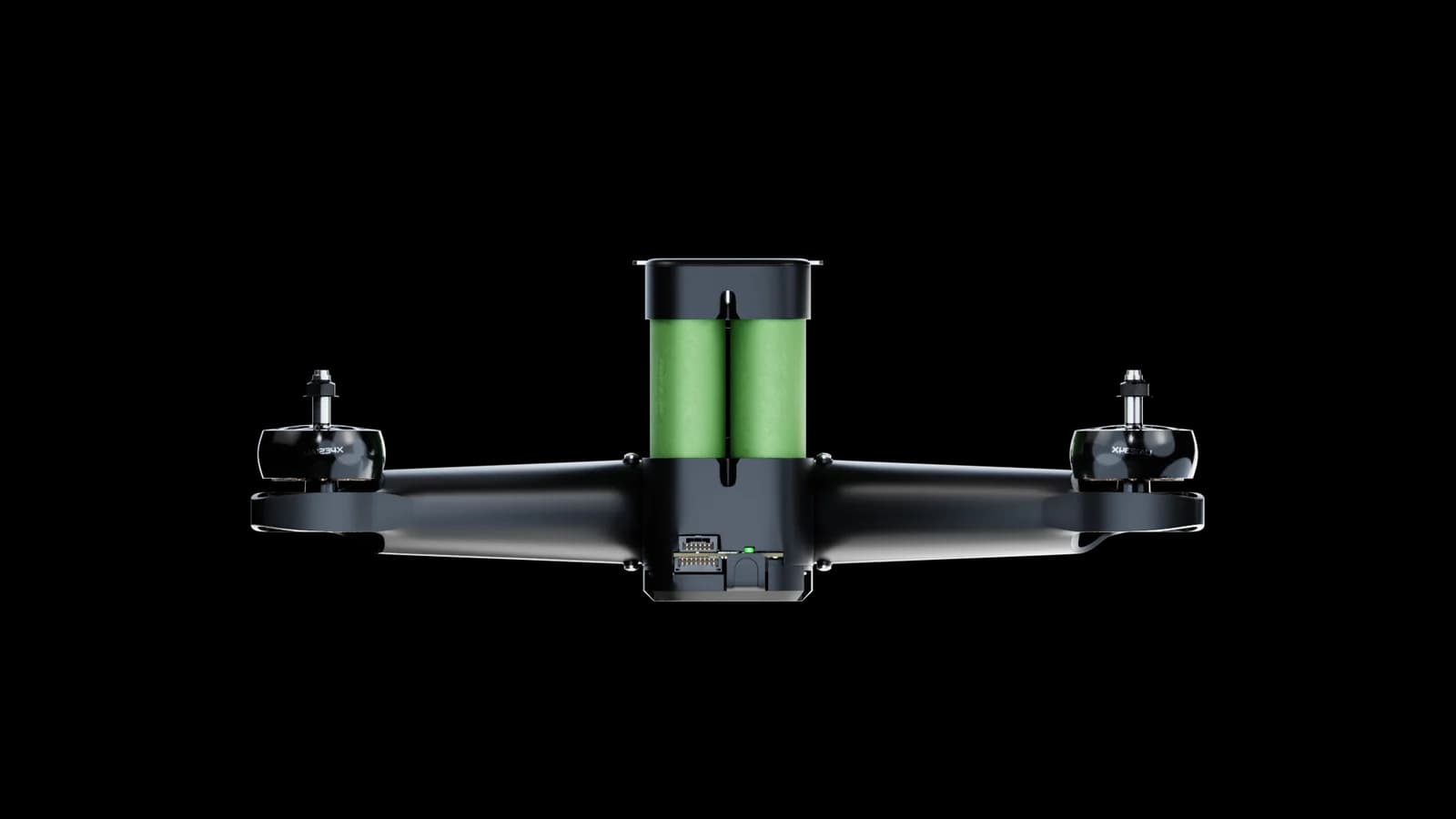

V-02 · page.proj.back

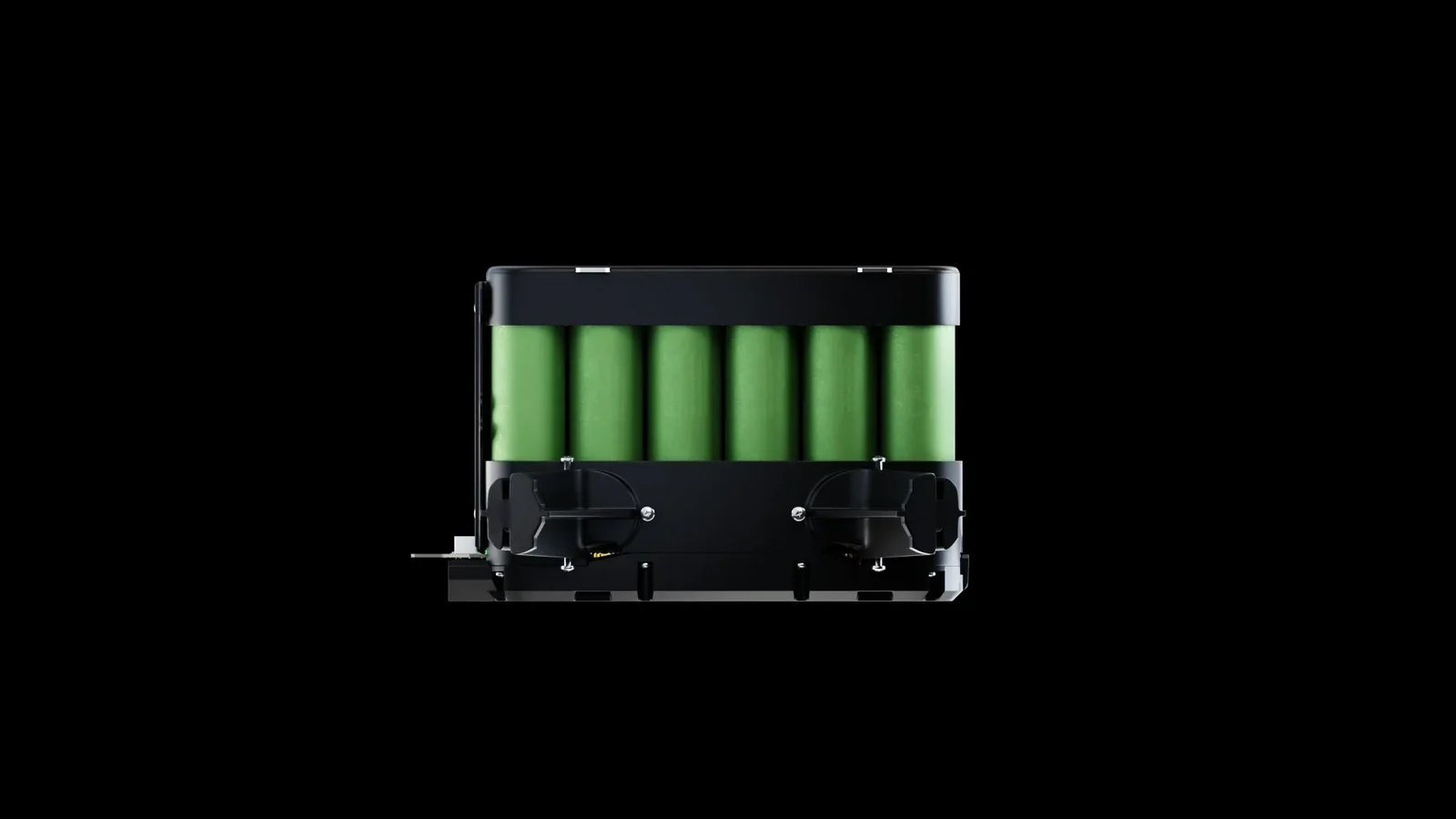

V-03 · page.proj.side

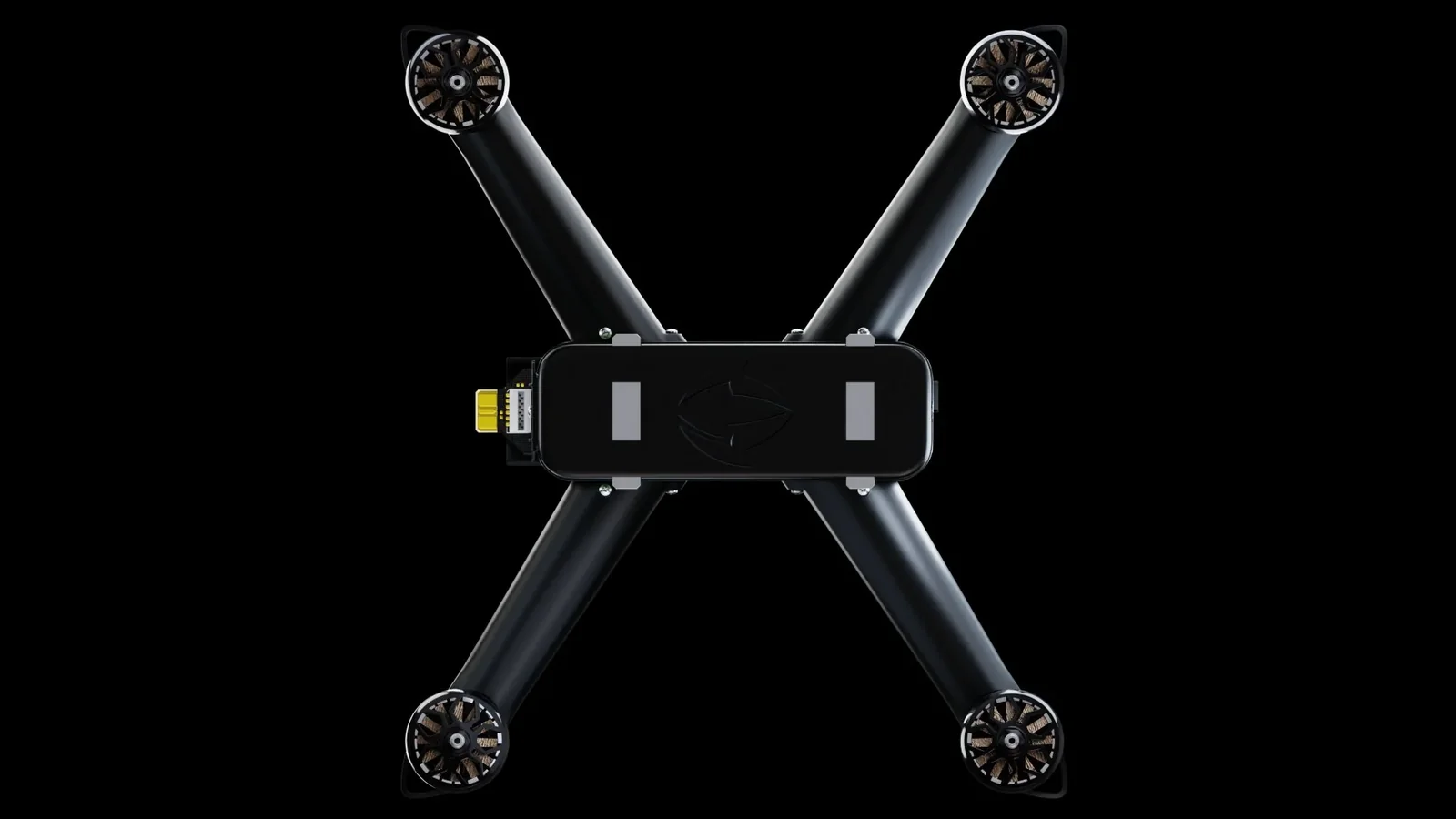

V-04 · page.proj.top
page.readout.signatureBOBER 1-20 / ADL / GVT
page.readout.activeLoadoutpage.readout.col.airframe
Features and Technical Specifications: • In-house manufactured корпус (injection-molded plastic) • Integrated battery (Samsung cells) • iFlight XING2 2809 FPV Motor Unibell motors (1250KV) • Main board of in-house production: Flight controller H743 Integrated barometer and dual gyro/accelerometer system ESC BMS system for battery balancing Power switch, push-button activation, and charge level indicator
- Speed
- 120 km/h
- Payload Weight
- up to 1.5 kg
- Endurance (empty)
- up to 40 min
- Endurance (2 kg)
- up to 16 min
page.readout.col.optics
▪ Camera (Caddx Ratel 2 Night Version) ▪ Adapter board (in-house manufactured) ▪ Housing (in-house manufactured) ▪ One-second replacement ▪ Optional GPS installation
- RESOLUTION
- 1200 TVL
- FOV
- 165°
- MIN ILLUMINATION
- 0.0001 lux
- LATENCY
- < 10 ms

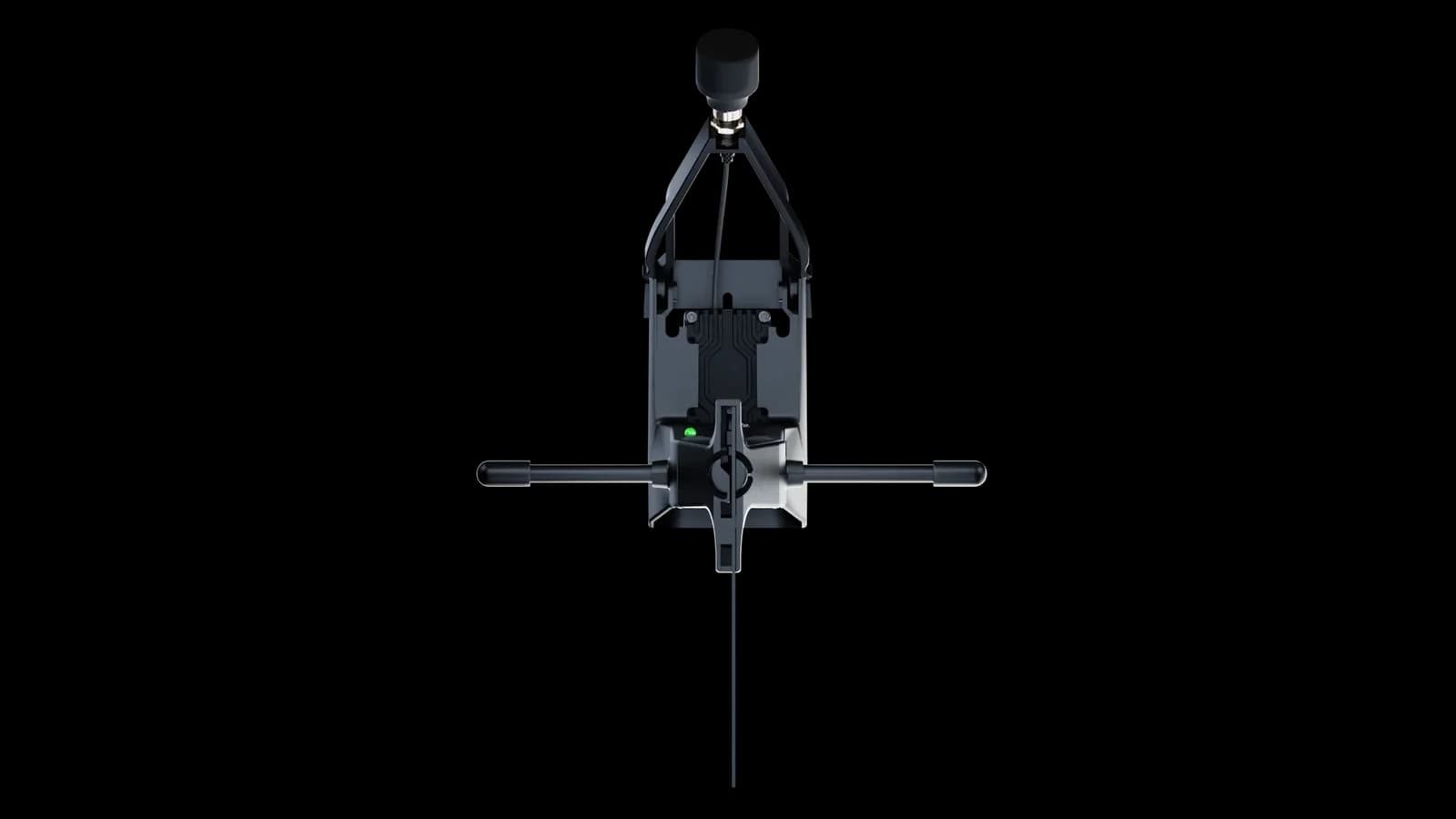

page.readout.col.datalink
Long-range RC link with integrated analog video transmitter. Standard pairing for analog camera modules.
- RC RANGE
- up to 30 km
- VTX POWER
- 25 – 1000 mW
- VIDEO BAND
- 5.8 GHz
- ENCRYPTION
- AES-128
