Systems & Modules

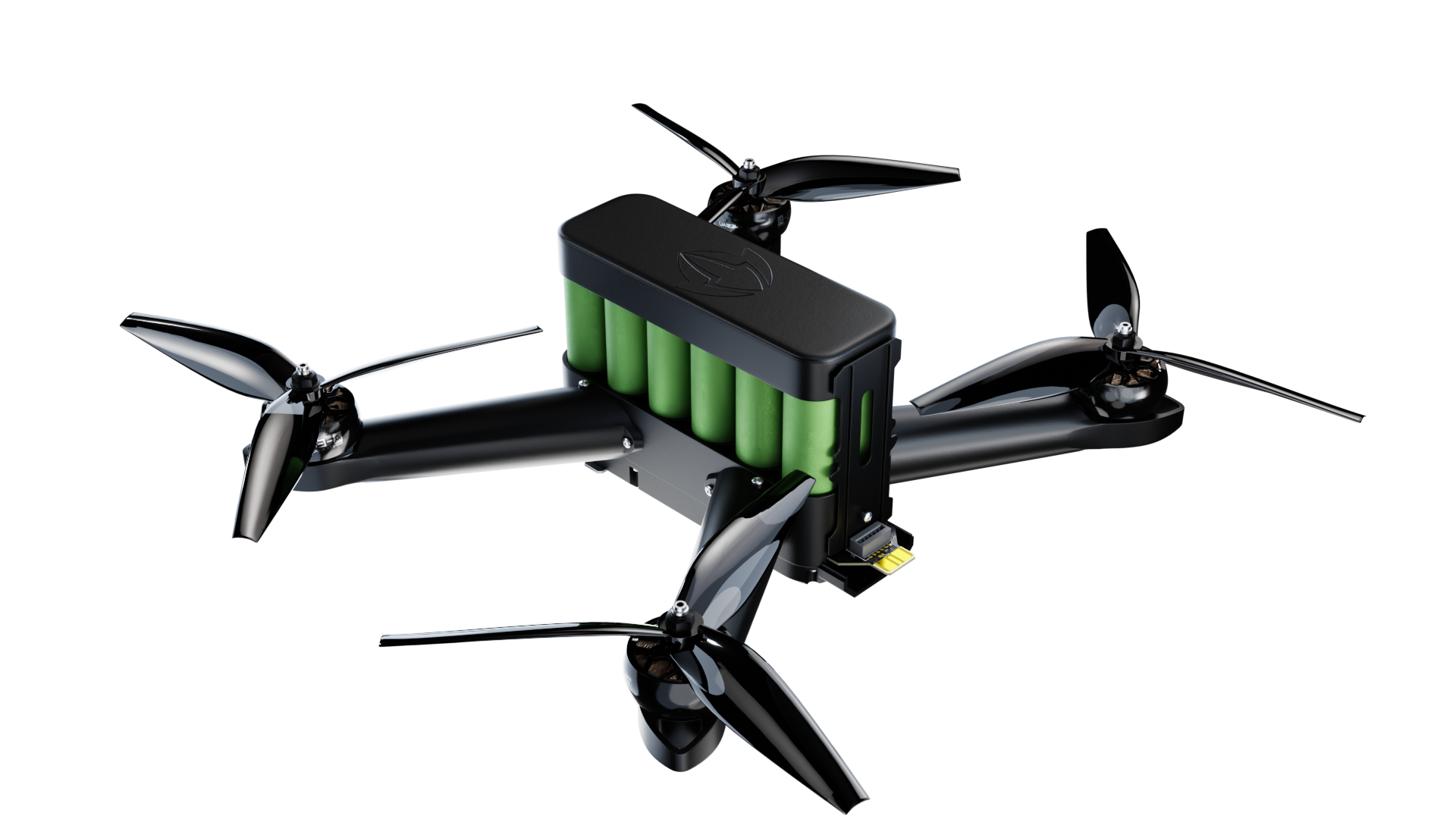

FPV Bober 1-20

Features and Technical Specifications: • In-house manufactured корпус (injection-molded plastic) • Integrated battery (Samsung cells) • iFlight XING2 2809 FPV Motor Unibell motors (1250KV) • Main board of in-house production:   Flight controller H743   Integrated barometer and dual gyro/accelerometer system   ESC   BMS system for battery balancing   Power switch, push-button activation, and charge level indicator

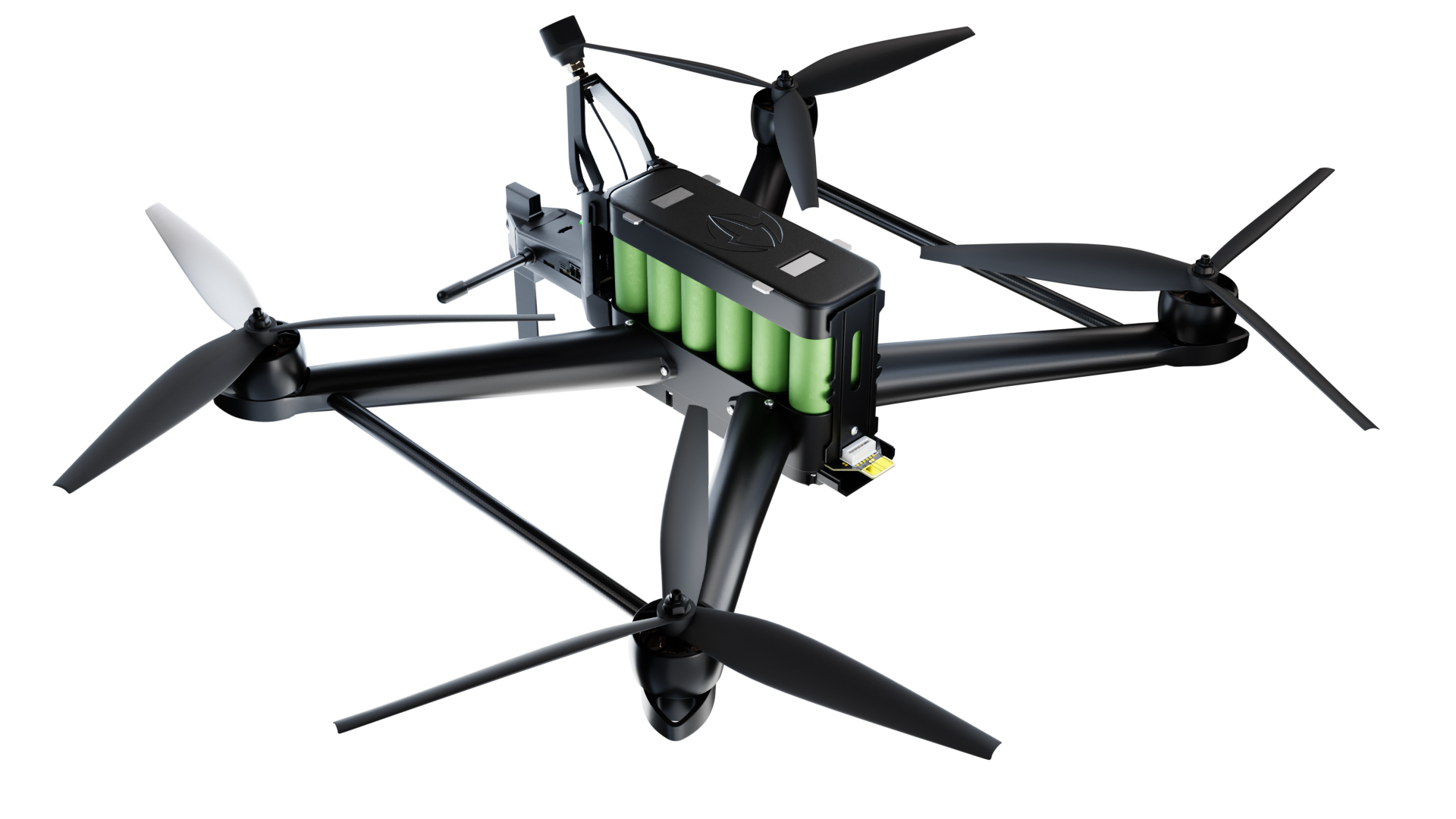

FPV Bober 2-20

Features and Technical Specifications: • In-house manufactured корпус (injection-molded plastic) • Integrated battery (Samsung cells) • Main board of in-house production:   Flight controller H743   Integrated barometer and dual gyro/accelerometer system   ESC   BMS system for battery balancing   Power switch, push-button activation, and charge level indicator

Mini QHL

Repeater Carrier

Field GCS

Ground Control Station

Control Station Case Configuration: Control station with integrated display and external interfaces; Drone remote controller (transmitter); JR module for connecting the remote controller to the control station; Cable for connecting the JR module to the control station; FPV goggles; DC-to-XT60 cable for connecting the goggles; AV and 3.5 mm mini-jack cables for transmitting video from the ground station to the goggles; Two 6S2P batteries for powering the station, with hot-swap capability; Power supply unit for connection to an external power source; SD cards for DVR recording.

Airborne Relay Module AD-160M

The air module of the digital repeater (DR UAV) receives an analog video signal via a 5.8/6.7 GHz video receiver (VRX), encodes it, and transmits it over a digital IP radio link to the ground module of the digital relay (DR GCS). The control transmitter is connected to the DR GCS. Control signals are transmitted via the digital IP radio link to the DR UAV and relayed through the onboard transmitter (TX).
